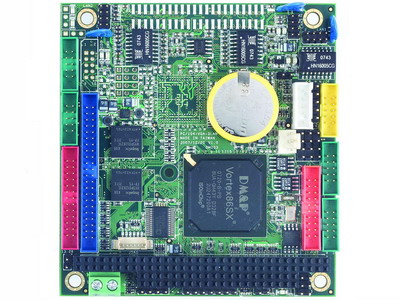

規(guī)格 SoC DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache Bus PC/104 standard compliant BIOS AMI BIOS System Memory 128MB DDR2 onboard Watchdog Timer 0 & 1 Sets Software programmable from 30.5 µsec. To 512 sec. x 2 sets （Watchdog 1 fully compatible with M6117D） LAN Integrated 10/100Mbps Ethernet Realtek 8100B 10/100Mbps Ethernet Controller Half/Full Duplex Capability Flash Disk Support Onboard 2MB SPI Flash Disk MSTI EmbedDisk Module （16MB and above） I/O Interface Enhanced IDE port （UltraDMA-100/66/33） x1 RS-232 port x3 RS-232/422/485 port x1 USB port （Ver2.0） x2 Parallel port x1 16-bit GPIO port x1 10/100Mbps Ethernet port x3 Connectors 2.0mm 44-pin box header for IDE x1 2.0mm 26-pin box header for Printer x1 2.0mm 20-pin box header for 16-bit GPIO x1 2.0mm 10-pin box header for USB x1 2.0mm 10-pin box header for RS-232 x4 2.0mm 8-pin header for Ethernet x3 2.54mm 7-pin header for Redundancy Signal x1 2.54mm 5-pin box header for Keyboard x1 2.54mm 5-pin box header for Mouse x1 2.54mm 4-pin header for -5V, -12V, +12V, GND, DC-in x1 2.54mm 3-pin header for RS-485 x1 2.54mm 2-pin header for Reset x1 2.54mm 2-pin header for System-Fail-SW x1 1.25mm 6-pin wafer for JTAG x1 Power Requirement Single Voltage +5V @ 390mA Weight 84g Board Size 90 X 96mm （3.54 x 3.77 inches） Operating Temperature -20°C ～ +70°C -40°C ～ +85°C（Optional）
