技術
|
|
|
|
IEEE 802.3 10 Base-T Ethernet
IEEE 802.3u 100 Base-TX Fast Ethernet
IEEE 802.3ab 1000 Base-TX
IEEE 802.3x Flow Control and Back-pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1p Class of Service (CoS)
IEEE 802.1Q VLAN and GVRP
IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE802.3ad Link Aggregation Protocol (LACP)
IEEE802.1x Port Based Network Access Protocol
|
|
|
性能
|
|
|
|
存儲轉發技術，32Gbps交換矩陣
|
|
|
|
|
|
|
|
32 bits ARM-9E running @180 Mhz，可達200MIPS; Embedded hardware based watch-dog timer.
|
|
|
|
|
8M bytes flash ROM, 64M bytes SDRAM.
|
|
|
|
|
64 bytes ~ 1632 bytes (包含1522 bytes VLAN Tag)
|
|
|
|
|
|
|
|
|
|
|
以太網:14,880pps, 快速以太網: 148,800, 千兆以太網:1488,100
|
|
|
|
|
嵌入式溫感設備用于系統溫度監控
|
|
|
|
|
Dry Relay output with 1A /30V DC or 0.5A/125V AC ability
|
|
| 系統管理 |
|
|
|
Tenet, local RS-232 console, Web- browser interface, SNMP, Trap and SMTP interface.
Cisco-Like CLI, Telnet, Web, TFTP/Web Update for firmware and configuration backup and restore, DHCP Client, warm reboot, reset to default, Admin password, Port Speed/Duplex Control, status, statistic, MAC address table display, static MAC, Aging time, SNMP v1, v2c, v3, Traps and RMON groups 1,2,3,9.
|
|
|
|
|
Supports command line interface with Cisco like commands and maximum 4 sessions; the telnet interface also supports SSH.
|
|
|
|
|
v1, v2c, V3 with SNMP trap function, trap station up to 4 and can be manually configured the trap server IP address.
|
|
|
|
|
MIBII, Bridge MIB, Ethernet-like MIB, VLAN MIB, IGMP MIB, Korenix Private MIB.
|
|
|
|
|

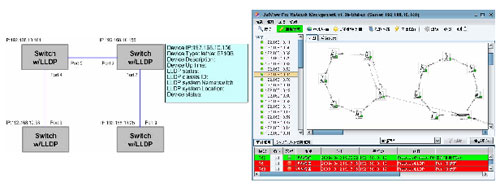

Supports JetView and JetView Pro with IEEE 802.1AB Link Layer Discovery Protocol for device finding and link topology discovery.
|
|
|
|
|
Supports NTP protocol with daylight saving function and localize time sync function.
|
|
|
|
|
|
|
|
|
|
|
| 網絡性能 |
|
|
|
端口連線速率，連通模式，當前狀態及啟動/關閉操作
|
|
|
|
|
IEEE 802.3ad port aggregation and static port trunk; trunk member up to 8 ports and maximum 5 trunk groups include Gigabit Ethernet port.
|
|
|
|
|
IEEE 802.1Q VLAN with GVRP. 64 VLAN groups, VLAN ID from 1 to 4094.
Supports Trunk, Hybrid and Link access modes.
|
|
|
|
|
IEEE 802.1p class of service; per port 4 priority queues.
|
|
|
|
|
Supports 4 physical queues, weighted fair queuing (WRR) and Strict Priority scheme, which follows 802.1p CoS tag and IPv4 ToS/ Diffserv information to prioritize the traffic of your industrial network.
|
|
|
|
|
IGMP Snooping v1/v2c /v3 for multicast filtering and IGMP Query mode; also support unknown multicasting process forwarding policies- drop, flooding and forward to router port.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DHCP Client, DHCP Server支持IP & MAC地址綁定和DHCP agent (option 82).
|
|
|
|
|
|
|
|
IEEE 802.3af / IEEE 802.3at; 端跨(End-span)配線方式
|
|
|
|
|
Auto mode:Auto detects and powering by IEEE 802.3af behaviors and IEEE 802.3at LLDP protocol for high power.
|
|
|
|
|
|
|
|
JetNet 6710G-M12
M12 D-code: V+ (1,2), V- (3,4)
JetNet 6710G-RJ
RJ-45: V+ (1,2), V- (3,6)
|
|
|
|
|
IEEE 802.3af: 15.4w
IEEE 802.3at: 30w
|
|
|
|
|
Port Based budget control with priority control, system will auto calculate total power and shut down low priority port when drawing current is over the power supply.
|
|
| 網絡冗余 |
| Multiple Super Ring (MSRTM) |
|
|
New generation Korenix Ring Redundancy Technology, Includes Rapid Super Ring, Rapid Dual Homing, TrunkRingTM, MultiRingTM and backward compatible with legacy Super RingTM.
|
|

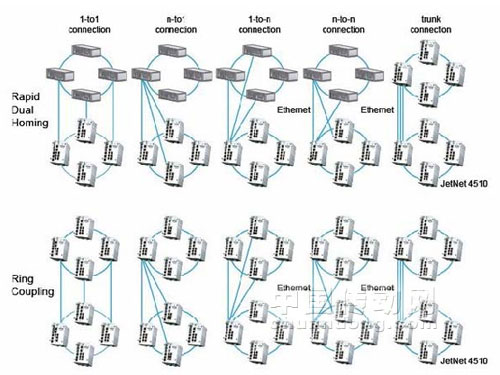

| Rapid Dual Homing (RDHTM) |
|
|
Multiple uplink paths to one or multiple upper switch
|
|
|
|
|
Integrate port aggregate function in ring path to get higher throughput ring architecture.
|
|
|
|
|
Couple or multiple up to 16 Rapid Super Rings, JetNet 6710G supports up to 4 100M rings and 1 Gigabit ring in single switch.
|
|
|
|
|
IEEE802.1D-2004 Rapid Spanning Tree Protocol. Compatible with Legacy Spanning Tree and IEEE 802.1w.
|
|
| 界面 |
|
|
|
10/100 TX port:
JetNet 6710G-RJ: 8 x rugged RJ-45
JetNet 6710G-M12: 8 x M12-D-Code 4-pin Female
10/100/1000 TX port:
JetNet 6710G-RJ: 2 x rugged IP-67 RJ-45
JetNet 6710G-M12: 2 x M12-A-Code 8-pin Female
控制端口&繼電器報警輸出:
M12 A-code Male for RS-232 and relay alarm output.
Power port: CTG-4F 4-pin Rugged IP-67 Connector
|
|
|
|
|
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable, EIA/TIA-568B 100-ohm (100m)
100 Base-TX: 2-pair UTP/STP Cat. 5 cable, EIA/TIA-568B 100-ohm (100m)
1000 Base-TX: 4-pair UTP/STP Cat. 5 cable, EIA/TIA-568B 100-ohm (100m)
|
|
|
|
|
10/100 RJ-45: Link /Activity(綠燈亮),Full duplex/Collision (黃燈亮)
Gigabit Copper: Link/Activity(綠燈亮)
PoE port: IEEE 802.3af 15.4w(綠燈亮: 供電正常; 閃爍: PoE異常 )
IEEE 802.3at High Power High Power(藍燈亮: 供電正常; 閃爍: PoE異常)
Power: System Power ready (綠燈亮)
Sys: System Ready (綠燈亮)
Alm: Alarm Relay Active (紅燈亮)
R.M.: Ring Master (綠燈亮),Ring Failure occurred (黃燈亮)
Sys: System Ready (綠燈亮: system ready)
|
|
|
|
|
|
|
|
Dry Alarm Relay output integrated within RS-232 ( pin 3 & 4)
繼電器報警功能可對用戶預設事件進行報警.
|
|
| 電源需求 |
|
|
|
JetNet 6710G-M12/JetNet 6710G-RJ 輸出電壓: DC 48~57V, 冗余電源輸入支持極性反接保護
|
|
| 機械規格 |
|
|
|
|
|
|
|
|
|

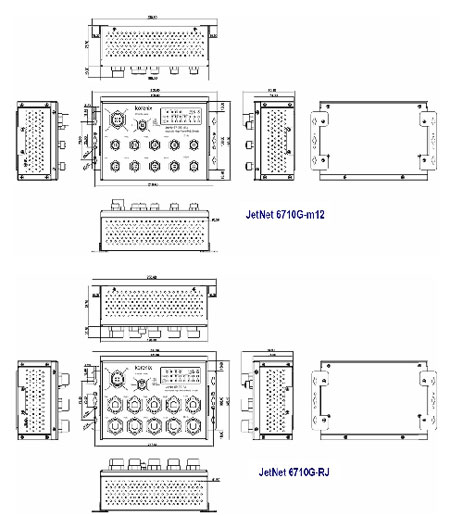

JetNet 6710G-M12/ 6710G-RJ : 198 (W) x 145.2 (H) x 74 (D) 不含安裝配件
JetNet 6710G-M12/ 6710G-RJ : 230.6 (W) x 145.2 (H) x 74 (D) 含安裝配件
|
|
|
|
|
JetNet 6710G-M12: 1.92kg
JetNet 6710G-RJ: 1.855kg
|
|
| 工作環境 |
|
|
|
-40 ~70°C: 15.4w x 8 ports
-40 ~60°C: 30w x 8 ports
|
|
|
|
|
|
|
|
|
|
|
AC 1.5KV for all ports and power
|
|
| 通過認證 |
|
|
|
FCC Class A, CE/ EN55011, CISPR-11
Radiation, Conduction
|
|
|
|
|
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6,
EN61000-4-8, EN61000-4-11.
Compliance with the EMC of EN50155 Railway applications -Electronic equipment
used on rolling stock – EN 50121-3-2 /EN50121-4
|
|
|
|
|
Compliance with IEC 61373 for Railway and Rolling stock.
|
|
|
|
|
Compliance with IEC 61373 for Railway and Rolling stock.
|
|
|
|
|
|
|
|
返回首頁
您當前所在的位置：
產品頻道
>
產品分類
>工業通訊>工業以太網>以太網交換機>科洛理思 JetNet 6710G 8 PoE + 2G網管型PoE工業以太網交換機
自從2003年PoE以太網供電標準頒布以來，PoE以太網供電技術逐漸發展成一種趨勢; 更多的設備裝備了PD技術，可通過普通以太網雙絞線獲得電量和數據，而不必為遠程設備另外鋪設電源線。然而，常用到的IEEE 802.3af PoE標準僅提供15.4W電量輸出，不能滿足高功率終端設備的需求，如WiMAX，IP DOM攝像頭等功耗大于15.4W的設備。
供電模式和強制供電模式，還添加了LLDP (Link Layer Discovery Protocol)協議，能夠有效的與PD設備協商獲得正確功耗值。此LLDP封包能夠提供智能的電量控制，滿足高功率終端的需求，為終端提供精確的高功率供電。
RSR(Rapid Super Ring)是第二代Korenix冗余網絡技術，將電口和光口的自愈時間從30ms大幅縮短到幾毫秒。Ring master可以通過RSR engine自動選擇，簡化了設置步驟。R.M.的1st Ring Port連接的是主通訊線路，而2nd Ring Port連接的是備援線路。一旦主通訊鏈路發生中斷，備援線路會立即切換成活動狀態，進行數據傳輸。此外，在自動選擇R.M.模式下，環網的復接恢復時間(Restoration Time)同樣為0ms。
TrunkRing是MSR的一項新功能，整合了RSR快速自愈環網和鏈路聚合兩項技術。它吸取了鏈路聚合能提高連線冗余性和連接速率的特點，只有當所有聚合連接全部斷連，環網才會斷開。鏈路聚合支持靜態聚合(static trunk)和動態聚合(LACP)。TrunkRing中并非要求每一段連接都一致。環網的連線可以是對稱的，亦可以是不對稱的。如環上有些連接是單線路，其它的可以是多條線路的聚合連接，且各聚合鏈路的組成員數量可以不同。
戶將多個以太網口進行邏輯捆綁以增加帶寬。聚合端口可被視為一個物理端口，所以帶寬會高于單一以太網口。同一個聚合組的成員端口可以均衡負載，相互備援。LACP鏈路聚合功能通常用于需要提高主干網絡帶寬的應用，這是一個提高網絡傳輸數據量的最經濟的方式。
